High Temperature Twin Screw Barrel for Extruder 16.5-400mm

تفاصيل المنتج

مكان المنشأ: جيانغسو ، الصين

اسم العلامة التجارية: ZHITIAN

شروط الدفع والشحن

الحد الأدنى لكمية: 1

الأسعار: $300

احصل على افضل سعر

تفاصيل المنتج

وصف المنتج

إبراز:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                high temperature twin screw barrel,extruder screw barrel 16.5-400mm,twin screw extruder barrel with warranty, extruder screw barrel 16.5-400mm, twin screw extruder barrel with warranty


مادة:	HIPX260 ، CR12MOV ، WR13 ، W6MO5CR4V2 ، WR30	وزن:	50 كجم
تصميم المسمار:	التوأم برغي	نطاق القطر:	16.5 إلى 400 ملم
أنواع النماذج:	20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135	نوع البرميل:	برميل صلب ، برميل مركب مباشر ، برميل بطانة كاملة ، برميل بطانة سبيكة مركبة
مواد برميل صلبة:	Hastelloy-C Alloy ، 38Crmoala ، 304/316/316L من الفولاذ المقاوم للصدأ	المواد المركبة المباشرة:	ZT610 NI60 المستندة إلى+CU ، ZT615 NI60 ، ZT625 NI60 القائم على كربيد Tungsten ، CORBIDE المستند إلى
مواد بطانة كاملة:	38Crmoala Liner ، بطانة 440C من الفولاذ المقاوم للصدأ ، بطانة CR12MOV ، SKD11/SKD61 ، بطانة DC53 ، ب	مركب سبيكة بطانة:	S45C+ZT610 NI60 القائم على Liner+Cu ، S45C+ZT615 NI60 ، S45C+ZT625 NI60 Liner+Tungsten Carbide ، S45
لون:	معدن	جودة:	مقاومة عالية للتآكل والتآكل
تستخدم ل:	بثق المسمار التوأم	دقة:	عالية الدقة
خدمة الخدمة:	طويل

مادة:	HIPX260 ، CR12MOV ، WR13 ، W6MO5CR4V2 ، WR30
وزن:	50 كجم
تصميم المسمار:	التوأم برغي
نطاق القطر:	16.5 إلى 400 ملم
أنواع النماذج:	20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135
نوع البرميل:	برميل صلب ، برميل مركب مباشر ، برميل بطانة كاملة ، برميل بطانة سبيكة مركبة
مواد برميل صلبة:	Hastelloy-C Alloy ، 38Crmoala ، 304/316/316L من الفولاذ المقاوم للصدأ
المواد المركبة المباشرة:	ZT610 NI60 المستندة إلى+CU ، ZT615 NI60 ، ZT625 NI60 القائم على كربيد Tungsten ، CORBIDE المستند إلى
مواد بطانة كاملة:	38Crmoala Liner ، بطانة 440C من الفولاذ المقاوم للصدأ ، بطانة CR12MOV ، SKD11/SKD61 ، بطانة DC53 ، ب
مركب سبيكة بطانة:	S45C+ZT610 NI60 القائم على Liner+Cu ، S45C+ZT615 NI60 ، S45C+ZT625 NI60 Liner+Tungsten Carbide ، S45
لون:	معدن
جودة:	مقاومة عالية للتآكل والتآكل
تستخدم ل:	بثق المسمار التوأم
دقة:	عالية الدقة
خدمة الخدمة:	طويل

High Temperature Twin Screw Barrel for Extruder 16.5-400mm

High Temperature Twin Screw Barrel for Engineering Resin Processing

Product Specifications

Attribute	Value
Material	EPDM
Weight (kg)	50
Spare Parts Type	Barrel
Video Outgoing-Inspection	Provided
Machinery Test Report	Provided
Warranty	Unavailable
Key Selling Points	High-accuracy
Screw Design	Twin screw
Material Options	Hipx260, Cr12MOV, Wr13, W6mo5cr4V2, Wr30
Application Machine	Twin Screw Extruder
Range	16.5 to 400mm
After-Sales Service	Engineers Available to Service Machinery Overseas

Product Overview

Color: Metal
Standard: GB ISO 9001
Model: Type 20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135
Brand: Zhitian
Quality: High wear-resistance and corrosion-resistance
Used: For twin screw extruder

Efficient and stable, widely used in industries: The twin-screw extruder barrels produced by Zhitian are widely used in plastics, rubber, chemicals, food, new energy and other industries. Countless extruders on the market use our accessories. These prove our strength in efficient and stable operation.

Advanced Building Block Design

The main screw and barrel of the split twin-screw extruder adopt an advanced "building block" design. The screw is composed of various screw blocks installed on the mandrel and barrel lining, forming a sleeve that can be adjusted according to different screw blocks. This design allows flexible combination of the screw component structure according to the process requirements of the material variety to achieve material transportation, refinement, shearing, and discharge.

Reduced Maintenance Costs

Another advantage of the "building block" design is that worn screw and barrel components can be partially replaced, preventing the entire screw or barrel from being scrapped and greatly reducing maintenance costs. This means you save time and money without having to replace the entire unit.

Material Options

Type Of Barrels	Materials
Solid Barrel	Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel
Direct Compound Barrel	ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten carbide, HIP Cobalt Based+Tungsten carbide
Complete Liner Barrel	38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, W6Mo5Cr4V2 Liner, ZTCr26 Liner, SAM26/WR13 Liner, CPM10V/WR5 Liner, ZT610 Ni60 Based Liner+Cu, ZT615 Ni60 Based Liner, ZT625 Ni60 Based Liner+Tungsten carbide, HIP Cobalt Based Liner+Tungsten carbide
Compound Alloy Liner Barrel	S45C+ZT610 Ni60 Based Liner+Cu, S45C+ZT615 Ni60 Based Liner, S45C+ZT625 Ni60 Based Liner+Tungsten carbide, S45C+HIP Cobalt Based Liner+Tungsten carbide

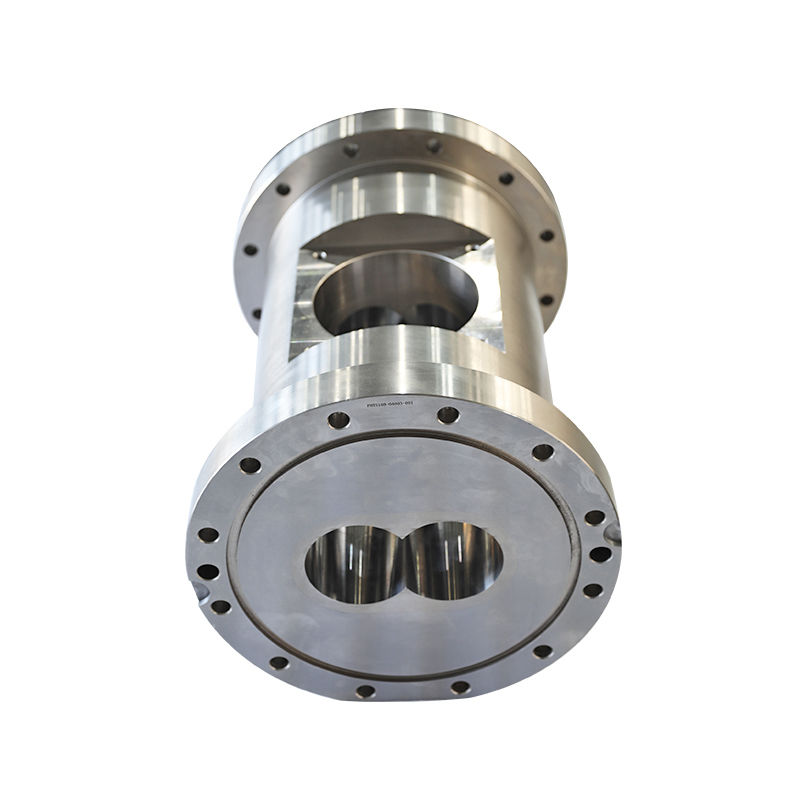

Product Gallery

Why Choose Zhitian's Extruder Barrel?

We have extensive experience in twin-screw extruder screw barrels. Through continuous practice, we have developed a variety of new screw barrels, which, with different screw designs, greatly increase output and enhance service life. We also provide OEM services for well-known extruder complete machine manufacturers worldwide. Zhitian is one of the best extruder barrel manufacturers in China.

Our Advantages

Long service life
Material: Choose materials with high wear resistance, corrosion resistance or both according to customer needs
Professional technical team provides timely sample measurement, design, and technical services for component combinations
Complete modern management system ensures 100% qualified products with traceable quality
Wide range of applications: Universal for processing various materials

Company Profile

NANJING ZHITIAN specializes in manufacturing replacement parts for twin screw extruders with over 20 years experience. We manufacture gearboxes, barrels and screw elements of twin screw extruders, and also provide refurbishment services for gearboxes and barrels.

Our company has strong technical force, excellent processing equipment, advanced production technology, strict inspection system and perfect after-sales service, praised by customers. Our products have mature applications in major global well-known brands.

Frequently Asked Questions

Q1: What products and services does your company primarily offer?

A: Our company is a leading global manufacturer of key components for twin-screw extruders, mainly providing critical components such as twin-screw extruder gearboxes, barrels, screw elements, and core shafts. We are renowned for our excellent quality and professional service.

Q2: What are the features of your twin-screw extruder gearboxes?

A: Our twin-screw extruder gearboxes are characterized by high efficiency, stability, and durability, providing powerful propulsion for our customers. Precision design and high-quality materials ensure outstanding performance.

Q3: In which industries are your products widely used?

A: Our products find extensive applications in industries such as processing high-molecular materials like plastics, rubber, and synthetic fibers, as well as in packaging for food, pharmaceuticals, and emerging fields like lithium battery slurry coating in new energy sources.

Q4: How can we obtain customized solutions?

A: We provide personalized product designs and professional technical support. Contact our customer service team for detailed customization options.

Q5: How can we establish a partnership with your company?

A: We welcome long-term partnerships. Contact our customer service team for more information.

Q6: What is your company's guarantee for product quality?

A: We are committed to delivering high-quality products and ensure compliance with the highest standards through rigorous quality control processes.
