تفاصيل المنتج
مكان المنشأ: جيانغسو ، الصين
اسم العلامة التجارية: ZHITIAN
شروط الدفع والشحن
الحد الأدنى لكمية: 1
الأسعار: US$300
مادة: |
سبيكة |
وزن: |
50 كجم |
تصميم المسمار: |
التوأم برغي |
أنواع المواد: |
HIPX260 ، CR12MOV ، WR13 ، W6MO5CR4V2 ، WR30 |
نطاق القطر: |
16.5 إلى 400 ملم |
أنواع النماذج: |
النوع 20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135 |
مواد برميل صلبة: |
Hastelloy-C Alloy ، 38Crmoala ، 304/316/316L من الفولاذ المقاوم للصدأ |
المواد المركبة المباشرة: |
ZT610 NI60 المستندة إلى+CU ، ZT615 NI60 ، ZT625 NI60 القائم على كربيد Tungsten ، CORBIDE المستند إلى |
مواد بطانة كاملة: |
38Crmoala Liner ، بطانة 440C من الفولاذ المقاوم للصدأ ، بطانة CR12MOV ، SKD11/SKD61 ، بطانة DC53 ، ب |
مركب سبيكة بطانة: |
S45C+ZT610 NI60 القائم على Liner+Cu ، S45C+ZT615 NI60 ، S45C+ZT625 NI60 Liner+Tungsten Carbide ، S45 |
ارتداء المقاومة: |
مقاومة عالية التآكل |
مقاومة التآكل: |
مقاومة عالية التآكل |
نوع التصميم: |
تصميم لبنة |
نوع قطع الغيار: |
برميل |
جودة: |
عالية الدقة |
مادة: |
سبيكة |
وزن: |
50 كجم |
تصميم المسمار: |
التوأم برغي |
أنواع المواد: |
HIPX260 ، CR12MOV ، WR13 ، W6MO5CR4V2 ، WR30 |
نطاق القطر: |
16.5 إلى 400 ملم |
أنواع النماذج: |
النوع 20/30/35/36/40/50/52/53/58/60/65/75/85/92/95/110/125/135 |
مواد برميل صلبة: |
Hastelloy-C Alloy ، 38Crmoala ، 304/316/316L من الفولاذ المقاوم للصدأ |
المواد المركبة المباشرة: |
ZT610 NI60 المستندة إلى+CU ، ZT615 NI60 ، ZT625 NI60 القائم على كربيد Tungsten ، CORBIDE المستند إلى |
مواد بطانة كاملة: |
38Crmoala Liner ، بطانة 440C من الفولاذ المقاوم للصدأ ، بطانة CR12MOV ، SKD11/SKD61 ، بطانة DC53 ، ب |
مركب سبيكة بطانة: |
S45C+ZT610 NI60 القائم على Liner+Cu ، S45C+ZT615 NI60 ، S45C+ZT625 NI60 Liner+Tungsten Carbide ، S45 |
ارتداء المقاومة: |
مقاومة عالية التآكل |
مقاومة التآكل: |
مقاومة عالية التآكل |
نوع التصميم: |
تصميم لبنة |
نوع قطع الغيار: |
برميل |
جودة: |
عالية الدقة |
| Attribute | Value |
|---|---|
| Material | Alloy (Hipx260, Cr12MOV, Wr13, W6mo5cr4V2, Wr30) |
| Weight | 50 kg |
| Spare Parts Type | Barrel |
| Screw Design | Twin screw |
| Application Machine | Twin Screw Extruder |
| Range | 16.5 to 400mm |
| Quality Standard | GB ISO 9001 |
| After-Sales Service | Engineers Available to Service Machinery Overseas |

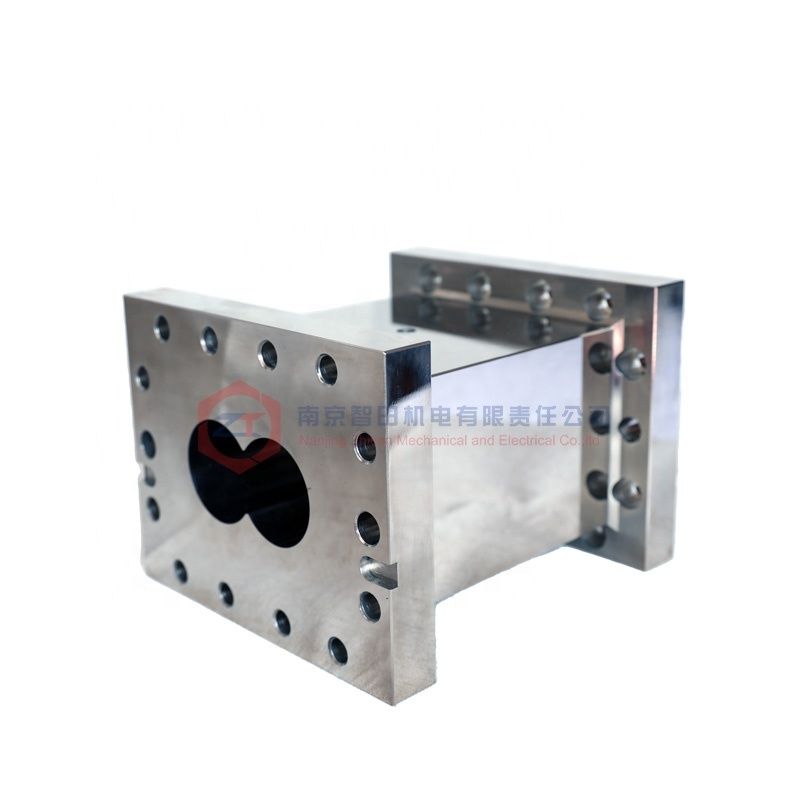

Our corrosion resistant twin screw extruder barrels are manufactured with high wear-resistance and corrosion-resistance materials, ensuring long service life in demanding industrial applications.
Our twin-screw extruder barrels are widely used in plastics, rubber, chemicals, food, new energy and other industries. The efficient and stable operation of countless extruders worldwide demonstrates our product reliability.
| Barrel Type | Materials |
|---|---|
| Solid Barrel | Hastelloy-C Alloy, 38CrMoAla, 304/316/316L Stainless Steel |
| Direct Compound Barrel | ZT610 Ni60 Based+Cu, ZT615 Ni60 Based, ZT625 Ni60 Based+Tungsten carbide, HIP Cobalt Based+Tungsten carbide |
| Complete Liner Barrel | 38CrMoAla Liner, 440C Stainless Steel Liner, Cr12MoV Liner, SKD11/SKD61 Liner, DC53 Liner, W6Mo5Cr4V2 Liner, ZTCr26 Liner, SAM26/WR13 Liner, CPM10V/WR5 Liner, ZT610 Ni60 Based Liner+Cu, ZT615 Ni60 Based Liner, ZT625 Ni60 Based Liner+Tungsten carbide, HIP Cobalt Based Liner+Tungsten carbide |
| Compound Alloy Liner Barrel | S45C+ZT610 Ni60 Based Liner+Cu, S45C+ZT615 Ni60 Based Liner, S45C+ZT625 Ni60 Based Liner+Tungsten carbide, S45C+HIP Cobalt Based Liner+Tungsten carbide |
With extensive experience in twin-screw extruder screw barrels, we have developed innovative designs that increase output and enhance service life. We provide OEM services for leading extruder manufacturers worldwide, establishing ourselves as one of China's premier extruder barrel manufacturers.
NANJING ZHITIAN specializes in manufacturing replacement parts for twin screw extruders with over 20 years of experience. We produce gearboxes, barrels, and screw elements for twin screw extruders, along with refurbishment services.
Our company combines strong technical expertise, excellent processing equipment, advanced production technology, strict inspection systems, and comprehensive after-sales service. Our products have been successfully implemented in major global brands.
As a leading global manufacturer of twin screw extruder components, we provide efficient, stable, and durable solutions for industries including plastics, rubber, food, pharmaceuticals, and new energy applications like lithium battery production.
We offer personalized product designs and technical support to create significant value for our customers worldwide. Our commitment to continuous improvement ensures we maintain our leadership position in the global market.
A: We manufacture key components for twin-screw extruders including gearboxes, barrels, screw elements, and core shafts, known for excellent quality and professional service worldwide.
A: Our gearboxes feature high efficiency, stability, and durability, with precision design and high-quality materials for outstanding industrial performance.
A: Our products serve plastics, rubber, synthetic fibers, food packaging, pharmaceuticals, and emerging fields like lithium battery production.
A: Contact our customer service team for personalized product designs and technical support tailored to your specific requirements.
A: We welcome long-term partnerships worldwide. Contact our customer service team to discuss your needs and our solutions.
A: We implement rigorous quality control processes to ensure our products meet the highest standards and exceed customer expectations.
